ps 2接口定义图
外观为：
母插引脚定义
|
Pin |
Name |
Dir |
Description |
|---|---|---|---|
|
1 |
DATA |
|
Key Data |
|
2 |
n/c |
– |
Not connected |
|
3 |
GND |
|
Gnd |
|
4 |
VCC |
|
Power , +5 VDC |
|
5 |
CLK |
|
Clock |
|
6 |
n/c |
– |
Not connected |
PS/2 6 针公插，外观为：
公插引脚定义
|
Pin |
Name |
Dir |
Description |
|---|---|---|---|
|
1 |
CLK |
|
Key CLOCK |
|
2 |
GND |
|
GND |
|
3 |
DATA |
|
Key DATA |
|
4 |
NC |
– |
Not connected |
|
5 |
VCC |
|
Power , +5 VDC |
|
6 |
n/c |
– |
Not connected |

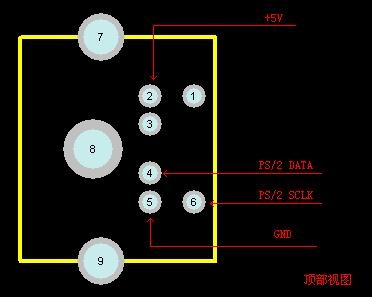

母座的PCB引脚
